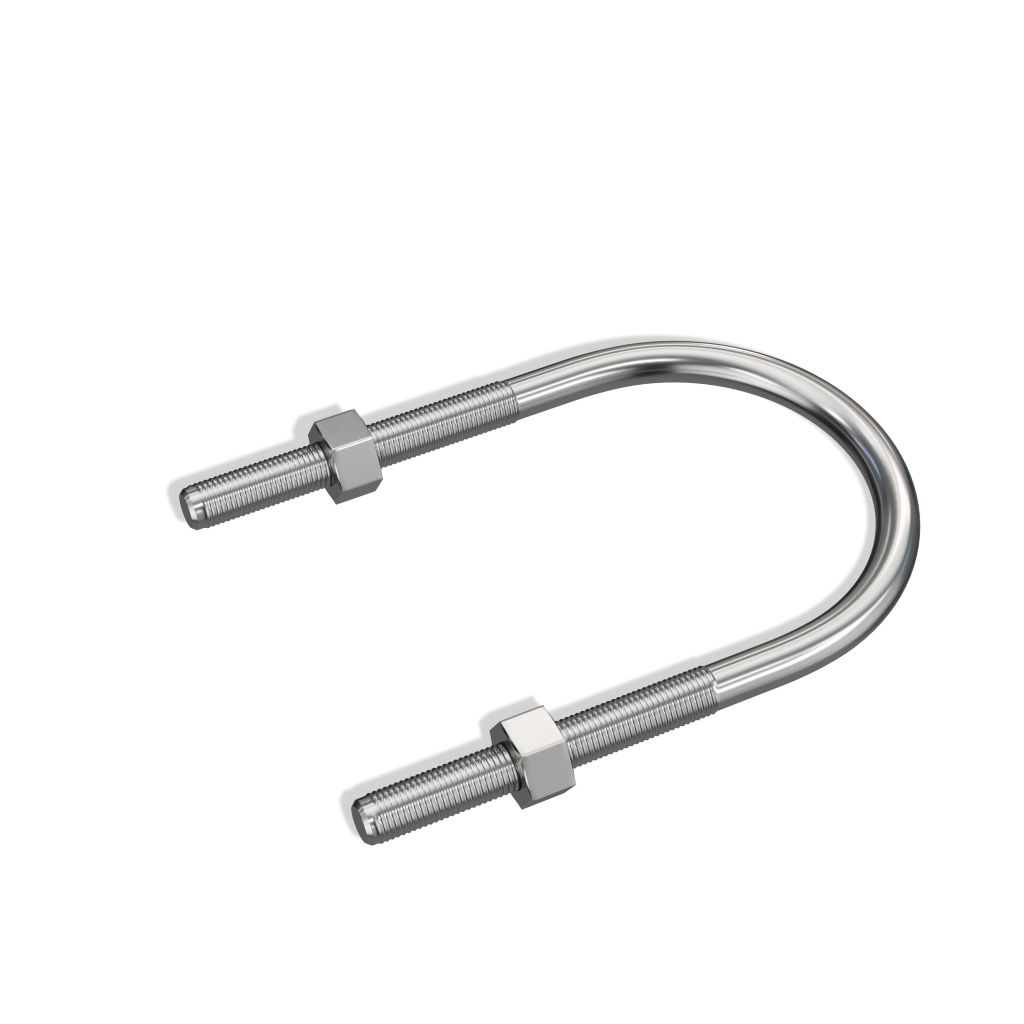

U-Bolts
Product Features
- Manufactured in 316 stainless steel for superior corrosion resistance, exceptional strength, and outstanding performance in harsh environments.
- Hygienic polished surface improves cleanability, resists microbial buildup, and delivers a consistent, professional appearance.
- Precision UNC threaded legs with smooth U-shape curvature for secure conduit clamping.
- High tensile strength and load-bearing capacity for industrial installations.
Certifications
- UL/cUL 2239 Listed
- UL File # E516500
- RoHS compliant
- REACH compliant
Applications
- RMC’s type 316 stainless steel U-Bolts deliver reliable support for mounting stainless steel conduit or pipe, ensuring strength and corrosion resistance in demanding environments.
Specifications
| Part Number | Trade Size | A | B | C | D | E | WT/PC (lbs.) |
|---|---|---|---|---|---|---|---|
| SR6UBS05 | ½” | 5/16”-18 UNC | 1.250” | 0.940” | 2.410” | 1.500” | 0.11 |
| SR6UBS07 | ¾” | 5/16”-18 UNC | 1.440” | 1.130” | 2.690” | 1.750” | 0.12 |
| SR6UBS10 | 1” | 5/16”-18 UNC | 1.690” | 1.390” | 3.150” | 1.750” | 0.14 |
| SR6UBS12 | 1-1/4” | 5/16”-18 UNC | 2.060” | 1.760” | 3.260” | 1.750” | 0.16 |
| SR6UBS15 | 1-1/2” | 5/16”-18 UNC | 2.310” | 2.010” | 3.500” | 1.750” | 0.20 |
| SR6UBS20 | 2” | 3/8”-18 UNC | 2.810” | 2.450” | 4.310” | 2.050” | 0.30 |
