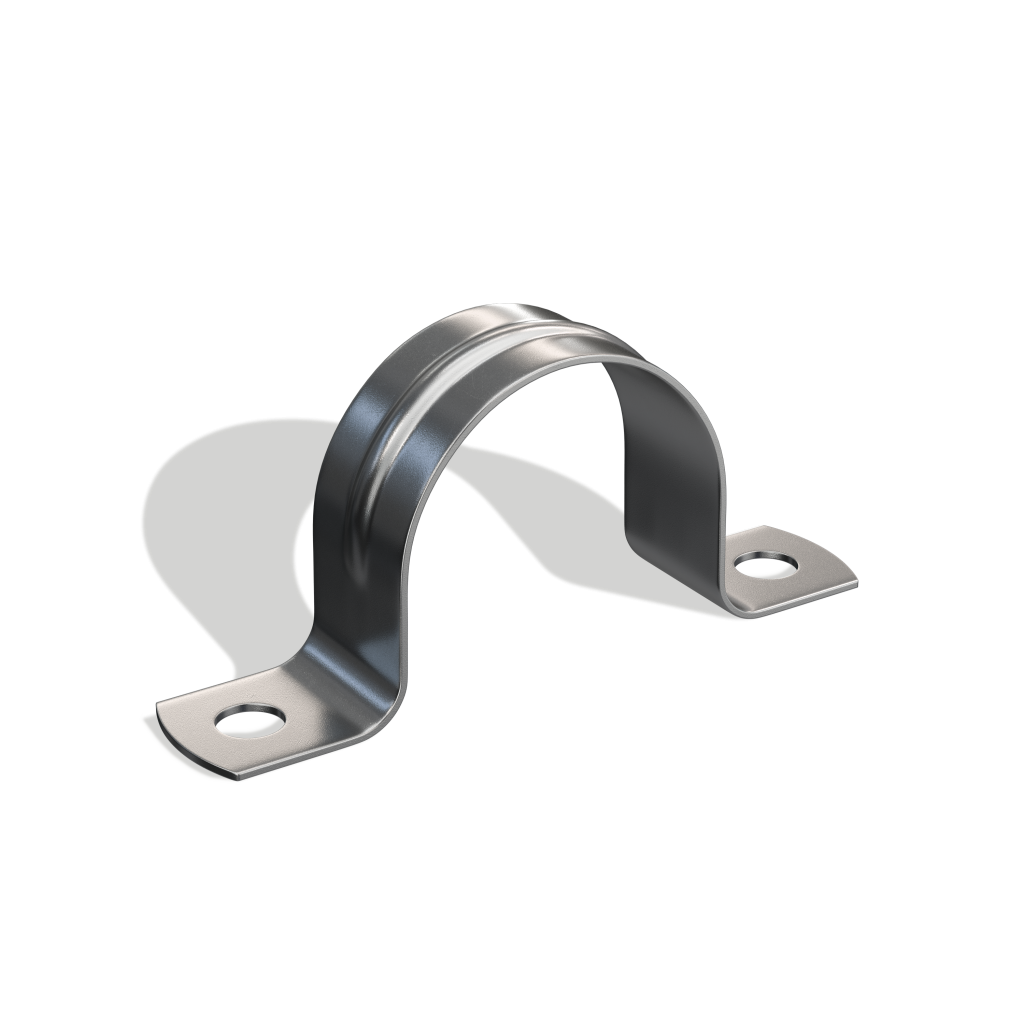

Two Hole Straps
Product Features
- Manufactured in 316 stainless steel for superior corrosion resistance, exceptional strength, and outstanding performance in harsh environments.
- Hygienic polished surface improves cleanability, resists microbial buildup, and delivers a consistent, professional appearance.
- Permanent fiber laser identification eliminates contamination risks and maintains traceability without surface marring.
- Heavy‑gauge stainless steel construction maintains shape and support under mechanical stress.
Certifications
- UL/cUL 2239 Listed
- UL File # E516500
- RoHS compliant
- REACH compliant
Applications
- RMC’s type 316 stainless steel Two Hole Straps are built for heavy‑duty performance, providing secure support and mounting of stainless steel Rigid Conduit to multiple structural members and flat surfaces in corrosive or demanding environments.
Specifications
| Part Number | Trade Size | A | D | T | Bolt | WT/PC |
|---|---|---|---|---|---|---|
| SR62H05 | 1/2” | 0.835” | 0.840” | 0.071” | 0.188” | 0.04 |
| SR62H07 | 3/4” | 0.992” | 1.050” | 0.079” | 0.188” | 0.05 |
| SR62H10 | 1” | 1.465” | 1.314” | 0.079” | 0.188” | 0.07 |
| SR62H12 | 1-1/4” | 1.660” | 1.660” | 0.079” | 0.250” | 0.11 |
| SR62H15 | 1-1/2” | 1.886” | 1.900” | 0.098” | 0.250” | 0.18 |
| SR62H20 | 2” | 2.303” | 2.376” | 0.110” | 0.250” | 0.20 |
| SR62H25 | 2-1/2” | 2.780” | 2.876” | 0.150” | 0.250” | 0.28 |
| SR62H30 | 3” | 3.425” | 4.000” | 0.177” | 0.250” | 0.41 |
| SR62H40 | 4” | 4.571” | 4.500” | 0.177” | 0.250” | 0.70 |
