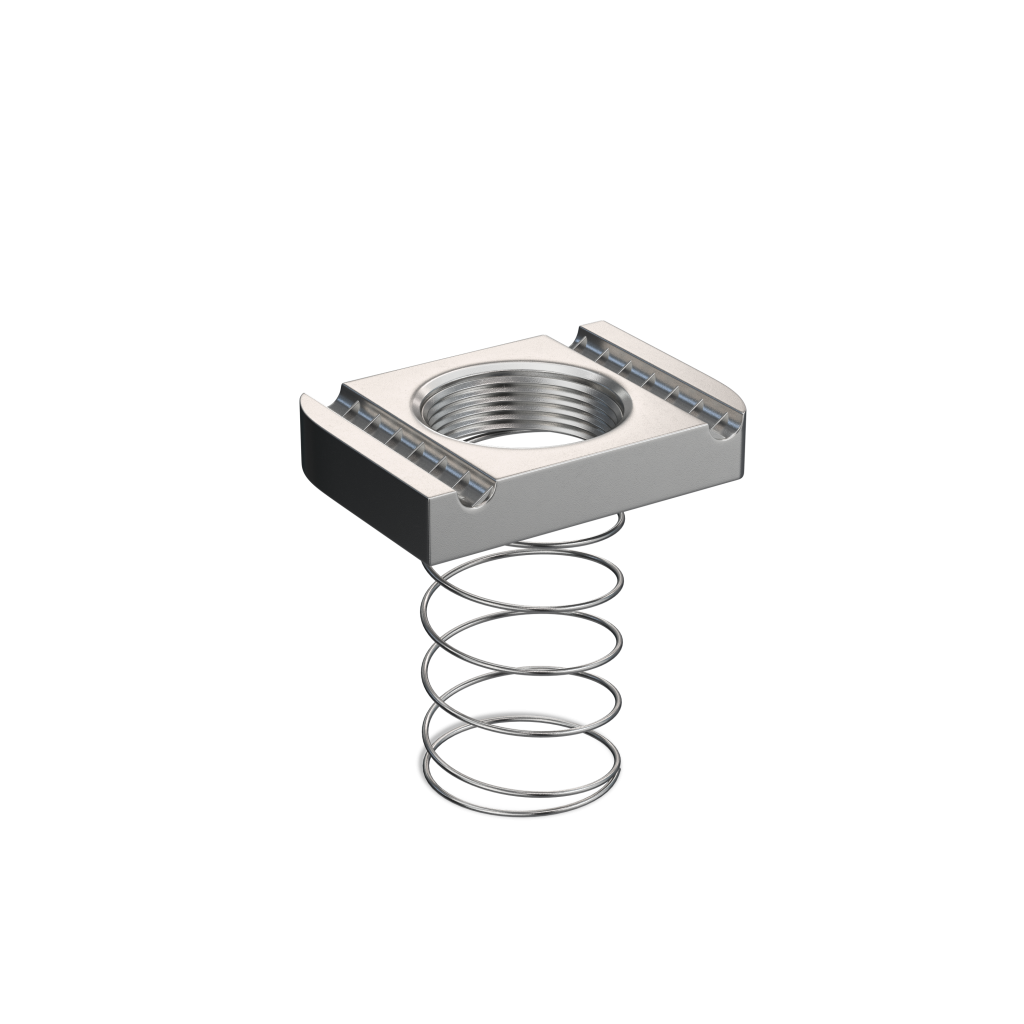

Spring Channel Nut
Product Features
- Manufactured in 316 stainless steel for superior corrosion resistance, exceptional strength, and outstanding performance in harsh environments.
- Hygienic polished surface improves cleanability, resists microbial buildup, and delivers a consistent, professional appearance.
- Precision cut threads meet ANSI B1.1 UNC Class 2 coarse series for
- reliable fit and consistent performance.
- Designed to fit standard stainless steel strut channels.
- Superior durability under vibration, thermal cycling and vibration.
- Manufactured with robust load capacity.
Certifications
- RoHS compliant
- REACH compliant
Applications
- RMC’s 316SS Channel Nuts with Spring are designed to provide a secure, corrosion-resistant fastening solution for stainless steel strut systems. The integrated spring holds the nut in place during installation, allowing for quick alignment and hands-free positioning inside the strut channel. This makes them ideal for supporting conduit, piping, and equipment in environments where reliability, sanitary compliance, and ease of installation are critical.
Specifications
| Part Number | Trade Size | Nominal | A | B | C | D | E | WT/PC (lbs.) |
|---|---|---|---|---|---|---|---|---|
| SR6CNWS02 | 1/4” | 275 | 1.375” | 0.820” | 0.375” | ¼”-20 UNC | 1.500” | 0.08 |
| SR6CNWS03 | 3/8” | 600 | 1.375” | 0.820” | 0.375” | 3/8”-16 UNC | 1.500” | 0.09 |
| SR6CNWS05 | ½” | 1,200 | 1.375” | 0.820” | 0.500” | 1/2”-13 UNC | 1.500” | 0.11 |
