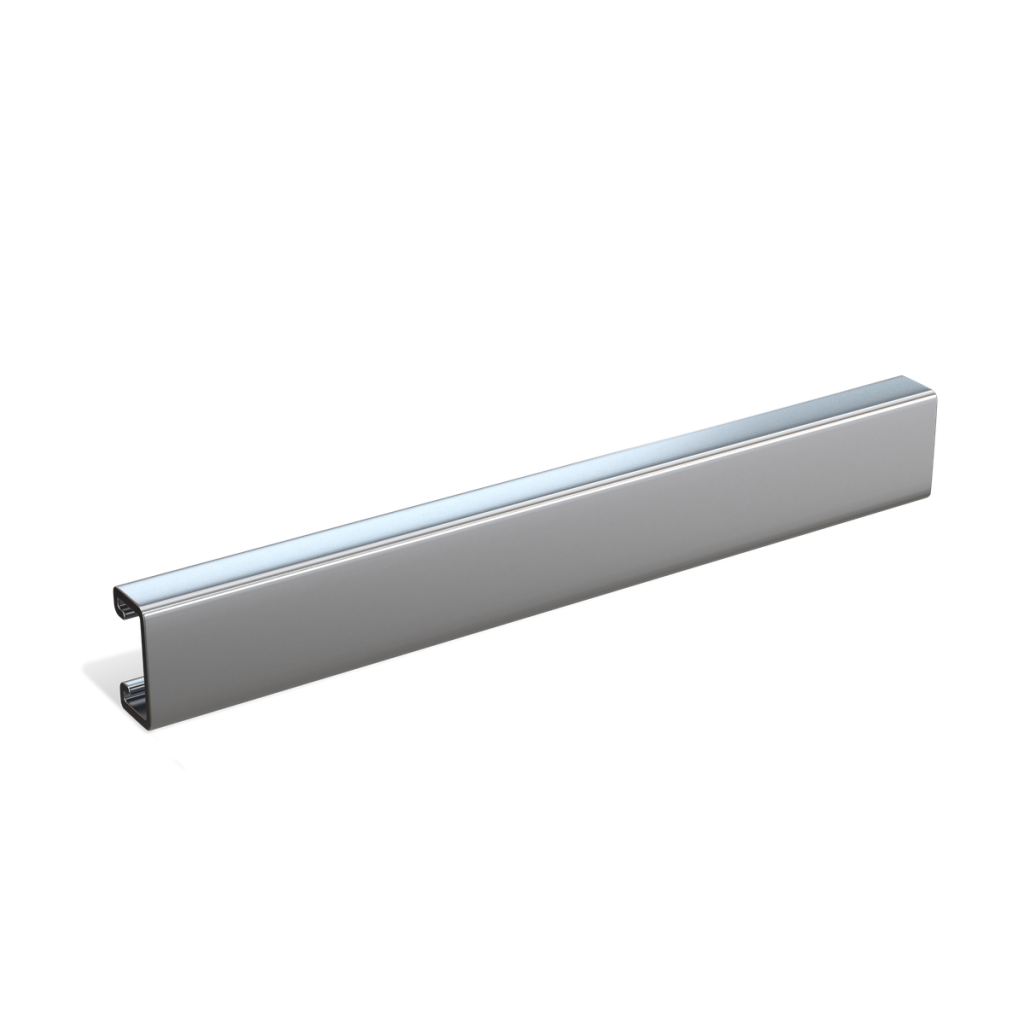

Shallow Channel Solid Strut
Product Features
- Strut channels offer exceptional versatility, allowing support systems to be mounted to ceilings, beams, columns, or embedded in concrete.
- RMC’s stainless steel features a hygienic polished finish that delivers outstanding protection in challenging environments.
- Among metallic electrical raceway options, stainless steel offers the highest corrosion resistance, along with exceptional strength and temperature performance.
- RMC offers stainless steel strut in type 304 & 316 alloys to be suitable for all corrosive environments.
- Produced from 14-gauge ASTM A240 sheet.
- Type 304 Part # - ST4-14G-1316-158-SLD
- Type 316 Part # - ST6-14G-1316-158-SLD
Certifications
- UL/cUL 6A Listed
- UL File # E531581
- CSA C22.2 No. 45.2-08
- NEC Article 344
- ANSI C80.1
- RoHS & REACH compliant
Applications
- RMC’s stainless steel strut channels are designed to support conduit, panel boxes, raceway systems, and other electrical components.
- RMC’s stainless steel are designed to perform in harsh, industrial environments including marine areas, chemical processing facilities, and food processing plants where rigorous chemical washdowns are essential.
- It offers superior corrosion resistance, minimizing the need for frequent maintenance and replacement.
Jump to Chart:
Beam Loading Capacity
| Span (in) | Max. Allowable Uniform Load (lbS.) | Deflection @ Uniform Load (in.) | SPAN/ 180 (lbs.) | SPAN/ 240 (lbs) | SPAN/ 360 (lbs.) |
|---|---|---|---|---|---|
| 24 | 450 | 0.11 | 450 | 420 | 280 |
| 36 | 300 | 0.24 | 250 | 190 | 130 |
| 48 | 230 | 0.44 | 140 | 110 | 70 |
| 60 | 180 | 0.67 | 90 | 70 | 50 |
| 72 | 150 | 0.96 | 60 | 50 | 30 |
| 84 | 130 | 1.32 | 50 | 30 | 20 |
| 96 | 110 | 1.67 | 40 | 30 | 20 |
| 108 | 100 | 2.16 | 30 | 20 | 10 |
| 120 | 90 | 2.67 | 20 | 20 | 10 |
Column Loading Capacity
| Unbraced Height (in.) | Max. Allowable Load @ Slot Face (LBS.) | k=0.65 (Lbs.) | k=0.80 (Lbs.) | k=1.0 (Lbs.) | k=1.2 (Lbs.) |
|---|---|---|---|---|---|
| 24 | 1840 | 5610 | 5210 | 4570 | 3850 |
| 36 | 1640 | 4660 | 3850 | 2800 | 1960 |
| 48 | 1310 | 3490 | 2480 | 1590 | 1100 |
| 60 | 1000 | 2400 | 1590 | *** | *** |
| 72 | 770 | 1670 | 1100 | *** | *** |
Lateral Bracing Capacity
| Span (ft.) | Span (in.) | 1-5/8" x 1-13/16" x 10' 14 Gauge (Shallow Profile) |
|---|---|---|
| 2 | 24 | 1.00 |
| 3 | 36 | 0.98 |
| 4 | 48 | 0.94 |
| 5 | 60 | 0.91 |
| 6 | 72 | 0.89 |
| 7 | 84 | 0.86 |
| 8 | 96 | 0.84 |
| 9 | 108 | 0.82 |
| 10 | 120 | 0.80 |
| 12 | 144 | 0.76 |
