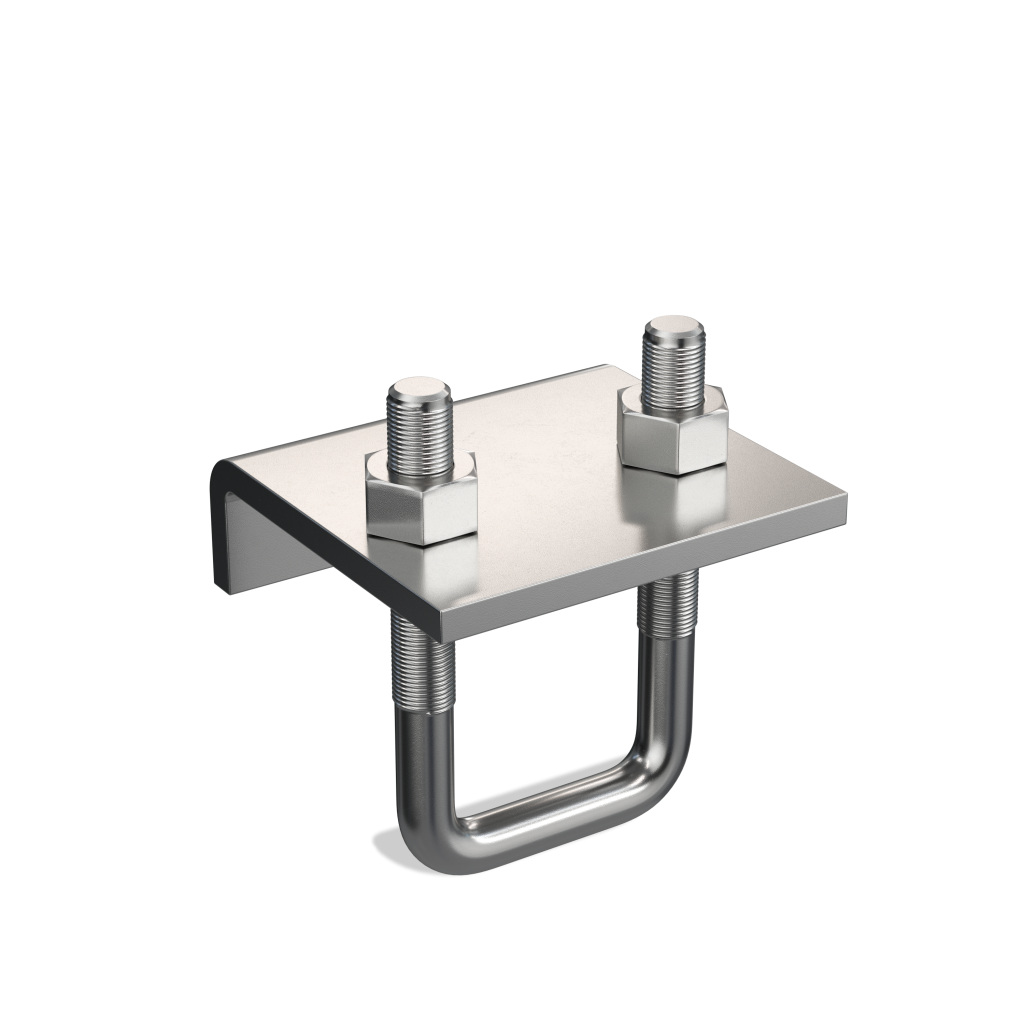

Right-Angle Beam Clamp
Product Features
- Manufactured in 316 stainless steel for superior corrosion resistance, exceptional strength, and outstanding performance in harsh environments.
- Hygienic polished surface improves cleanability, resists microbial buildup, and delivers a consistent, professional appearance.
- Designed to fit standard 1-5/8” stainless steel strut channels.
- Precision cut UNC threads for reliable fit and consistent performance.
- Heavy-duty design provides a stable base for strut/channel framing, ensuring long‑term reliability of conduit and equipment supports.
Certifications
- ASTM A240
- RoHS compliant
- REACH compliant
Applications
- RMC’S type 316 Stainless Steel Right Angle Beam Clamps provide a secure, corrosion‑resistant method of fastening stainless steel conduit or strut to beams, channels, flanges, or other angled structural members. Designed for upright or lateral support, these clamps eliminate the need for drilling and preserve structural integrity while ensuring reliable alignment of conduit runs and strut frameworks.
Specifications
| Part Number | Trade Size | Load Rating (lbs.) | A | B | C | D (threads) | E | F | G | H | WT/PC (lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SR6RABC | 1-5/8” | 1,000 | 3.700” | 2.500” | 1.700” | 3/8”-16 UNC | 3.100” | 2.750” | 0.750” | 0.250” | 0.80 |
