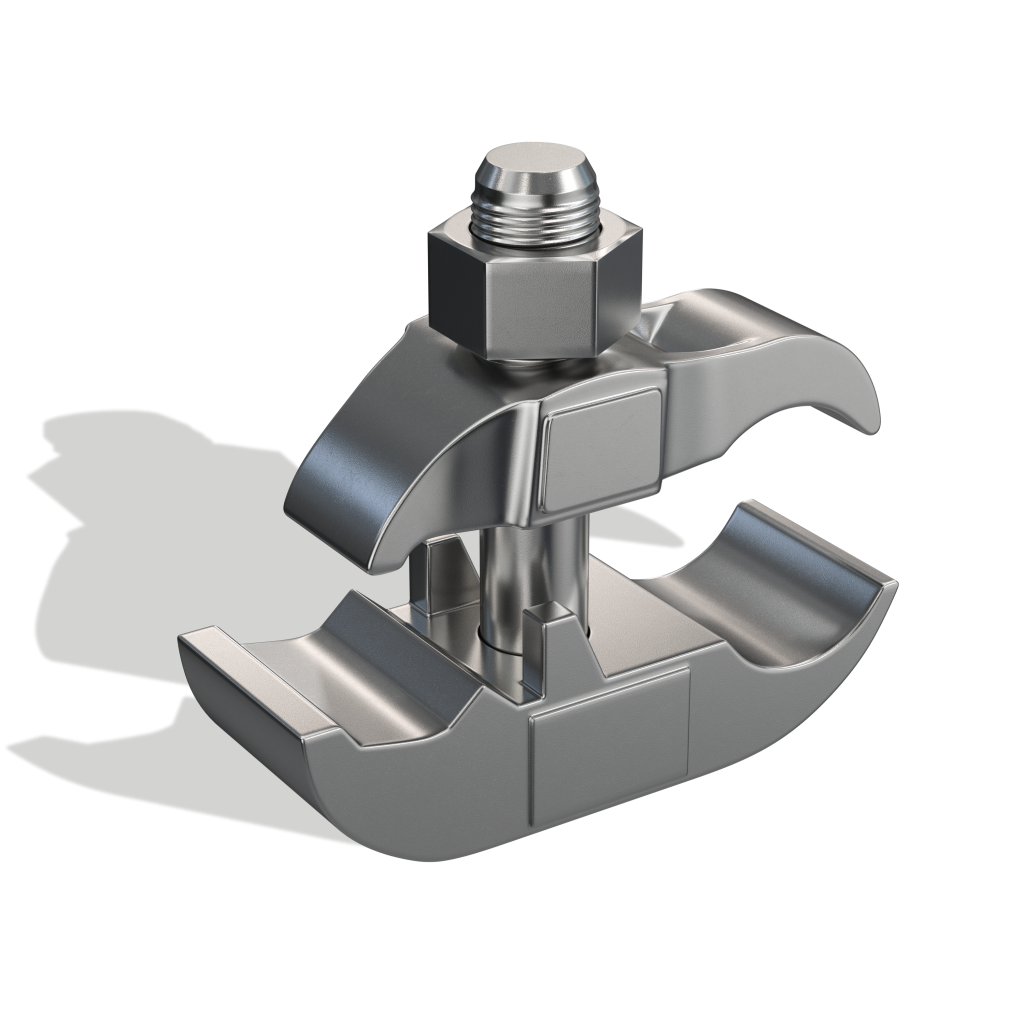

Parallel Clamps
Product Features
- Manufactured in 316 stainless steel for superior corrosion resistance, exceptional strength, and outstanding performance in harsh environments.
- Hygienic polished surface improves cleanability, resists microbial buildup, and delivers a consistent, professional appearance.
- Permanent fiber laser identification eliminates contamination risks and maintains traceability without surface marring.
- Type 316 stainless steel nut and bolt included.
- Heavy duty construction maintains alignment and support under vibration and mechanical stress.
Certifications
- UL/cUL 2239 Listed
- UL File # E516500
- ASTM A743
- RoHS compliant
- REACH compliant
Applications
- RMC’s type 316 stainless steel Parallel Clamps are engineered for secure, corrosion resistant support of stainless steel or PVC-coated conduit. Designed to fasten conduit runs parallel to the flange of I-beams, channels, or other structural members, these clamps eliminate the need for drilling holes, preserving structural integrity and reducing installation time. Manufactured from type 316 stainless steel, they deliver superior strength and long-term durability in harsh or sanitary environments, including food & beverage, chemical processing, and outdoor industrial applications.. C
Specifications
| Part Number | Trade Size | A | B | C | Weight/ |
|---|---|---|---|---|---|
| SR6PC07 | ¾” | 2.887” | 2.550” | 1.103” | 0.59 |
| SR6PC10 | 1” | 3.086” | 2.550” | 1.103” | 0.62 |
