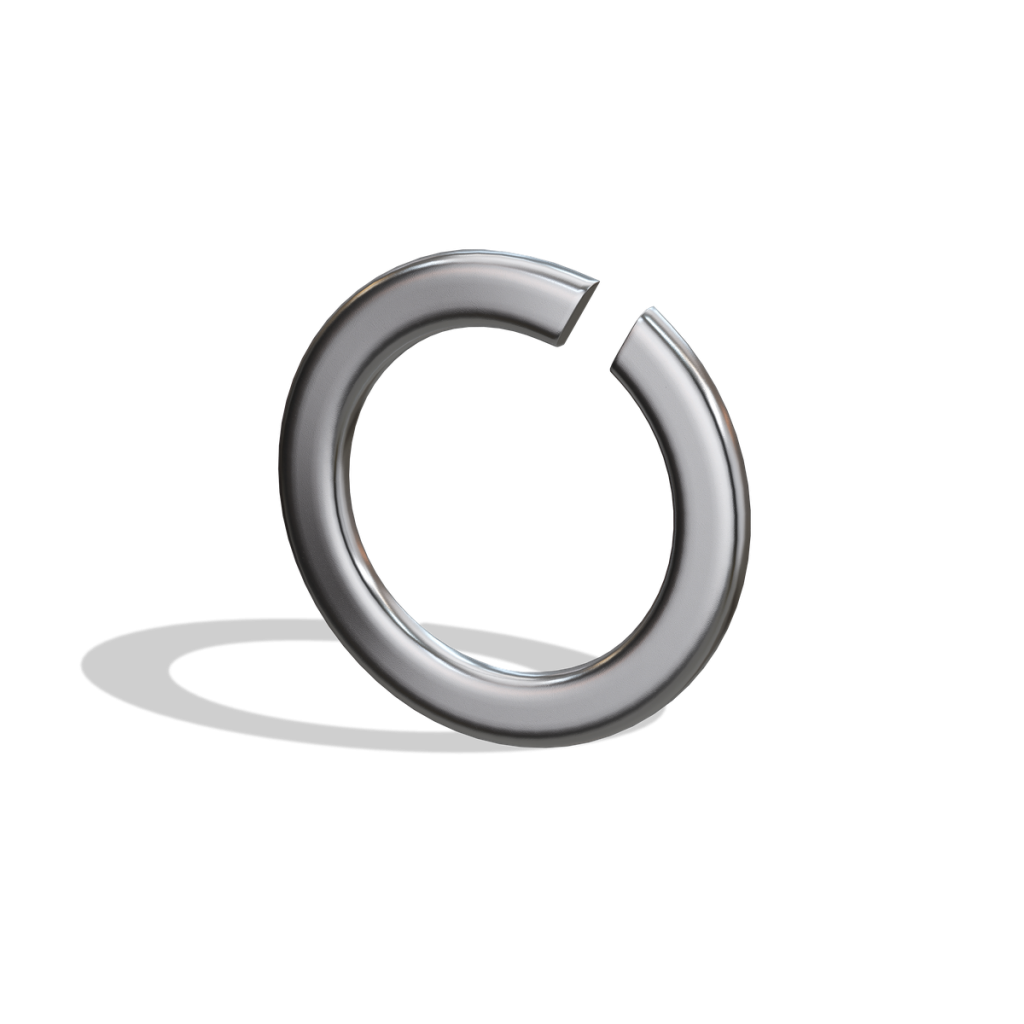

Lock Washer
Product Features
- Manufactured in 316 stainless steel for superior corrosion resistance, exceptional strength, and outstanding performance in harsh environments.
- Hygienic polished surface improves cleanability, resists microbial buildup, and delivers a consistent, professional appearance.
- Precision-machined, burr-free edges for safe handling and consistent fit.
- Body: Type 316 Stainless Steel
Certifications
- ASTM F593
- RoHS compliant
- REACH compliant
Applications
- RMC’s type 316 stainless steel Lock Washers are used to distribute load and prevent surface damage under bolt or nut heads in vibration prone environments.
- Ideal for environments requiring corrosion resistance, such as outdoor, washdown, chemical, or humid conditions.
- Suitable for use with stainless steel fasteners to maintain material compatibility and prevent galvanic corrosion.
- Provides spacing, insulation, and improved joint stability in bolted connections.
Specifications
| Part Number | Trade Size | A | B | (t+T) 2 Mean Section Thickness | W | WT/PC (lbs.) |
|---|---|---|---|---|---|---|
| SR6LW02 | 1/4" | 0.255" | 0.487" | 0.062" | 0.109" | 0.0025 |
| SR6FW03 | 3/8" | 0.380" | 0.680" | 0.094" | 0.141" | 0.0050 |
| SR6FW05 | 1/2" | 0.510" | 0.869" | 0.125" | 0.171" | 0.0130 |
