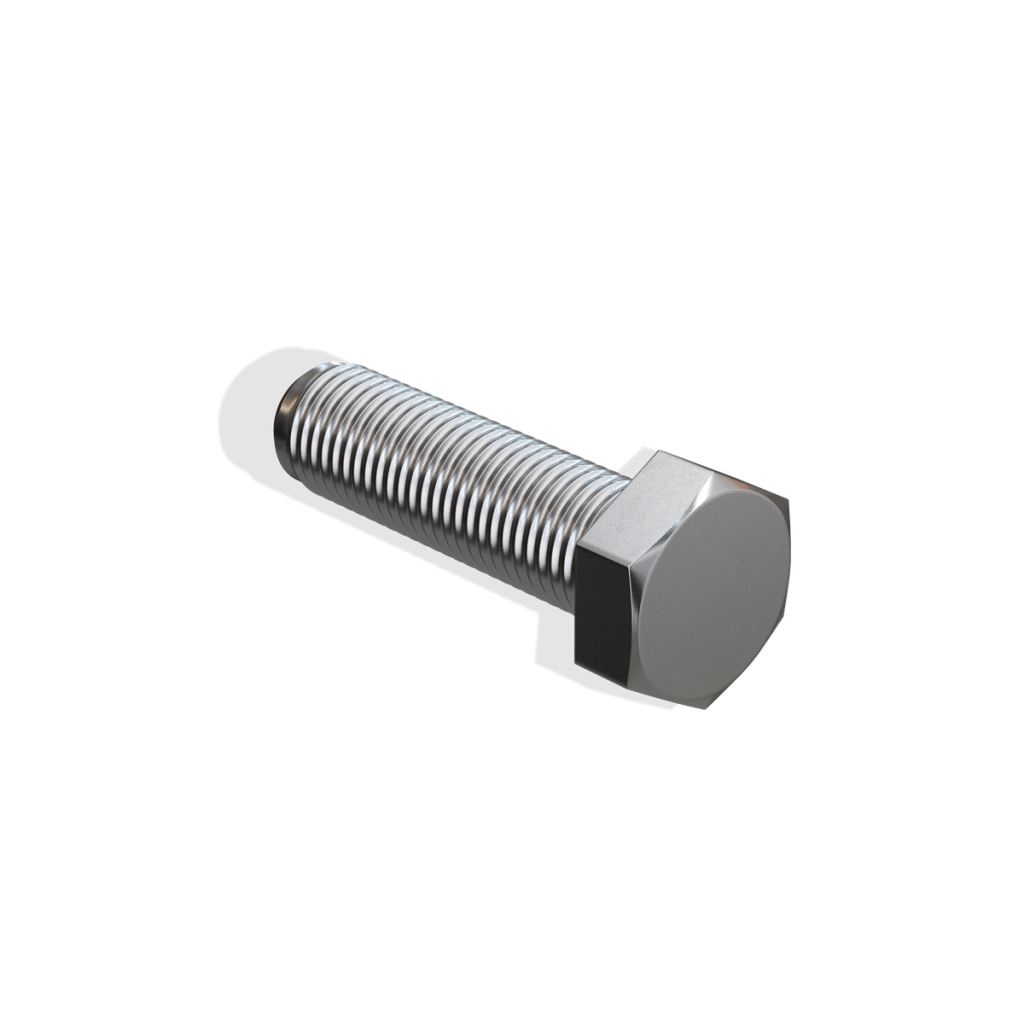

Hex Head Cap Screw
Product Features
- Manufactured in 316 stainless steel for superior corrosion resistance, exceptional strength, and outstanding performance in harsh environments.
- Right-hand, UNC (Coarse) threads
- Tensile Strength – 70,000 PSI
- Precision-machined, burr-free edges for safe handling and consistent threads.
- Body: Type 316 Stainless Steel
Certifications
- ASME B18.2.1
- RoHS compliant
- REACH compliant
Applications
- RMC’s Type 316 stainless steel hex head bolts are designed to deliver strong, secure fastening in applications subject to vibration, load cycling, and thermal expansion.
- Ideal for structural and mechanical connections requiring long-term strength and corrosion resistance in harsh, moisture-prone, or chemical environments.
- Suitable for use with stainless steel fasteners to maintain material compatibility and prevent galvanic corrosion.
- Provides consistent clamping force and joint integrity, helping maintain reliable performance in dynamic and high-stress conditions.
Specifications
| Part Number | Trade Size | Threads | A | B | C | D | WT/PC (lbs.) |
|---|---|---|---|---|---|---|---|
| ST603HB02 | 1/4" x 3/8" | 1/4"-20 | 7/16" | 0.156" | 0.375" | 0.250" | 0.011 |
| ST605HB02 | 1/4" x 1/2" | 1/4"-20 | 7/16" | 0.156" | 0.500" | 0.250" | 0.013 |
| ST610HB02 | 1/4" x 1" | 1/4"-20 | 7/16" | 0.156" | 1.000" | 0.250" | 0.016 |
| ST6114HB02 | 1/4" x 1-1/4" | 1/4"-20 | 7/16" | 0.156" | 1.250" | 0.250" | 0.020 |
| ST605HB03 | 3/8" x 1/2" | 3/8"-16 | 9/16" | 0.234" | 0.500" | 0.375" | 0.032 |
| ST610HB03 | 3/8" x 1" | 3/8"-16 | 9/16" | 0.234" | 1.000" | 0.375" | 0.040 |
| ST6112HB03 | 3/8" x 1-1/4" | 3/8"-16 | 9/16" | 0.234" | 1.250" | 0.375" | 0.045 |
| ST6115HB03 | 3/8" x 1-1/2" | 3/8"-16 | 9/16" | 0.234" | 1.500" | 0.375" | 0.095 |
| ST610HB05 | 1/2" x 1" | 1/2"-13 | 3/4" | 0.313" | 1.000" | 0.500" | 0.085 |
| ST6112HB05 | 1/2" x 1-1/4" | 1/2"-13 | 3/4" | 0.313" | 1.250" | 0.500" | 0.095 |
| ST6115HB05 | 1/2" x 1-1/2" | 1/2"-13 | 3/4" | 0.313" | 1.500" | 0.500" | 1.106 |
