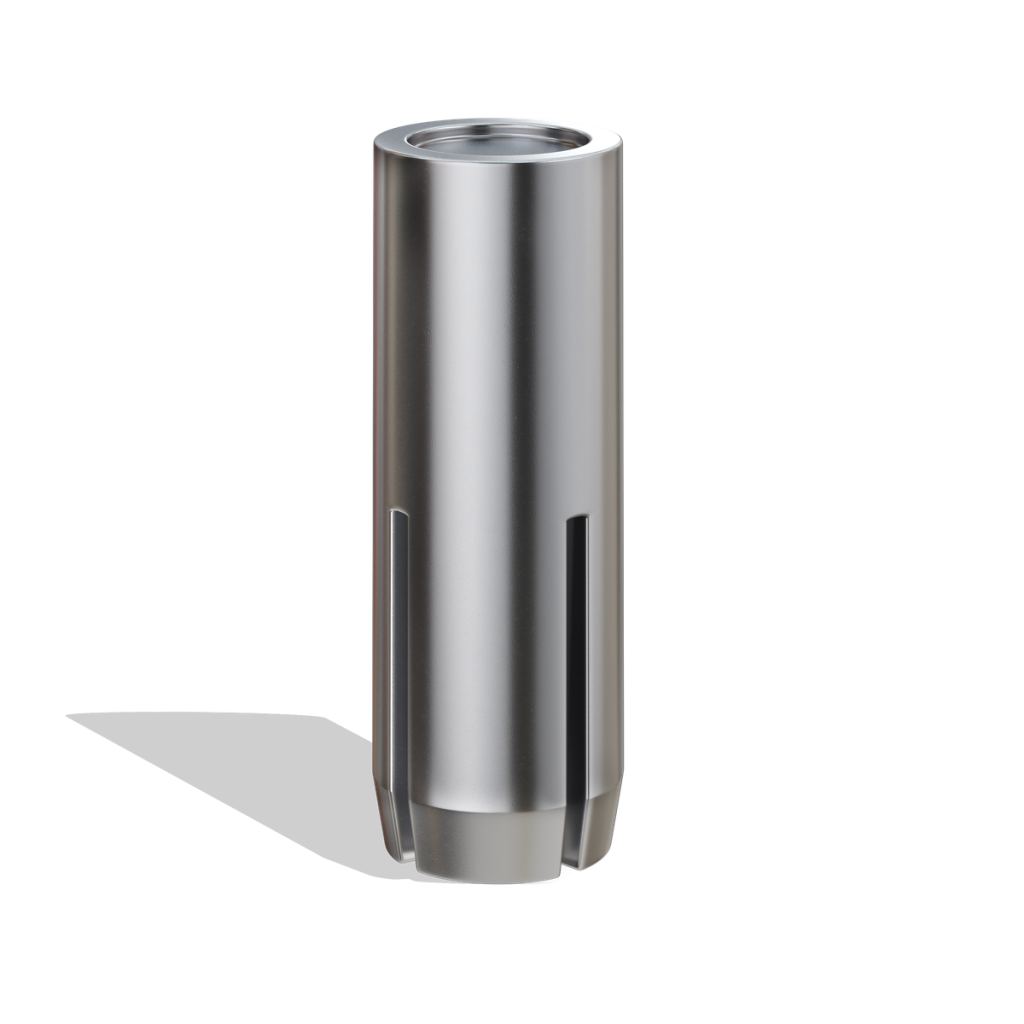

Drop-In Anchor
Product Features
- Manufactured in 316 stainless steel for superior corrosion resistance, exceptional strength, and outstanding performance in harsh environments.
- Hygienic polished surface improves cleanability, resists microbial buildup, and delivers a consistent, professional appearance.
- Flush-mount installation provides a clean, finished appearance & eliminates obstructions
- Right-hand, UNC (Coarse) threads
- Flush-mount installation provides a clean, finished appearance and eliminates surface obstruction.
- Internally threaded design allows for easy installation and removal of threaded rod or bolts without disturbing the anchor.
- Durable construction maintains long-term performance under vibration, load, and environmental stress
- Body: Type 316 Stainless Steel
Certifications
- ASTM F593
- ASME B18.2.2
- RoHS compliant
- REACH compliant
Applications
- RMC’s type 316 Stainless Steel 316 Drop-In Anchors are designed for corrosion-resistant supports in demanding environments.
- Manufactured from molybdenum-bearing 316 stainless steel, these Anchors provide superior resistance to rust, pitting, crevice corrosion, and chloride exposure compared with standard 18-8 or 304 stainless steel.
- Compatible with stainless steel fasteners and threaded rod when matching diameter, thread pitch, and material grade are specified.
Specifications
| Part Number | Trade Size | Length/Min Install Depth | Drill Bit Size | Pull-Out Strength (lbf) | Shear Strength (lbf) | WT/PC (lbs.) |
|---|---|---|---|---|---|---|
| SR6DIA02 | 1/4" | 1" | 3/8" | 1,980 | 2,120 | 0.025 |
| SR6DIA03 | 3/8" | 1-9/16" | 1/2" | 4,180 | 4,580 | 0.040 |
| SR6DIA05 | 1/2" | 2" | 5/8" | 5,760 | 6,400 | 0.100 |
