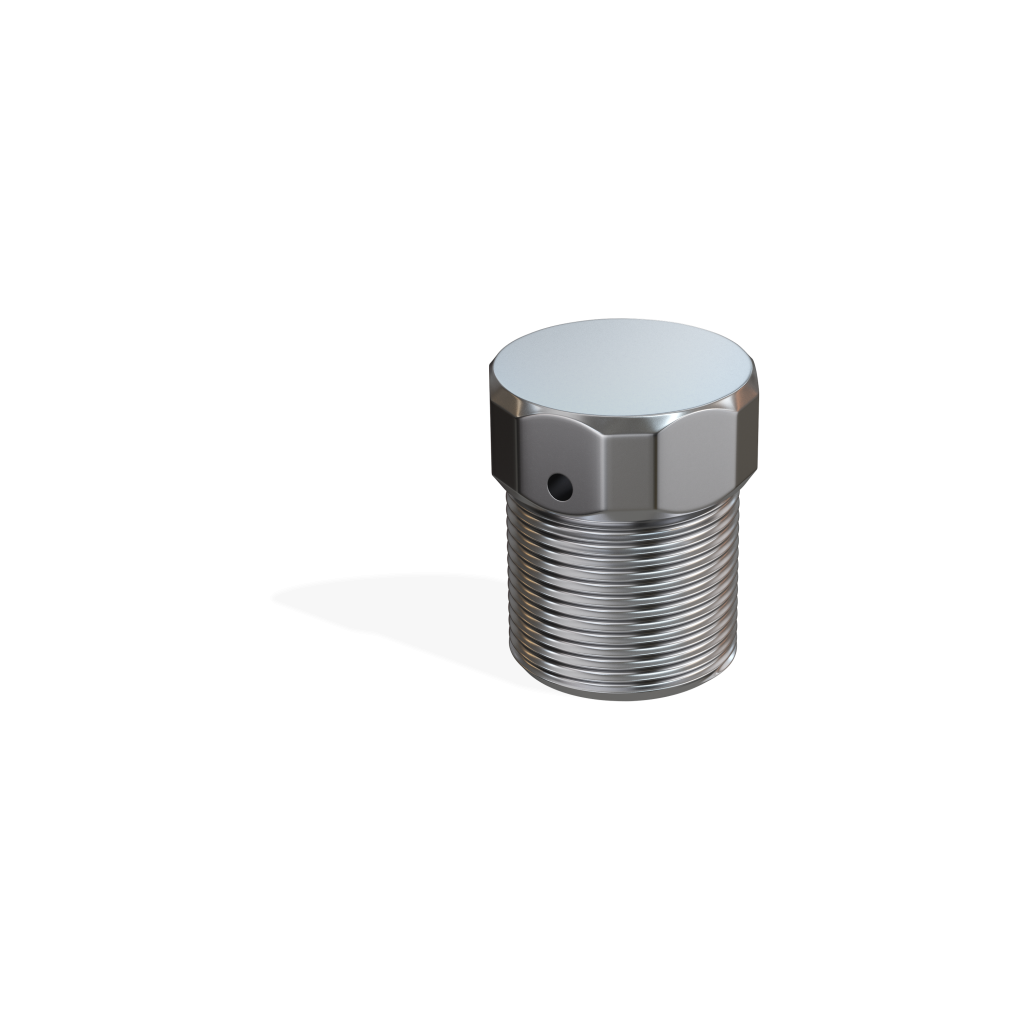

Drain Plug
Product Features
- Manufactured in 316 stainless steel for superior corrosion resistance, exceptional strength, and outstanding performance in harsh environments.
- RMC’s stainless steel Drain Plugs feature a hygienic polished finish, offering an exceptional aesthetic appearance and a consistent surface texture. This design enhances cleanability and significantly reduces the risk of microbial bacteria accumulation.
- Permanent fiber laser identification eliminates contamination risks and maintains traceability without surface marring.
- Machined tapered male threads ensure a tight, reliable connection, while the smooth internal bore protects conductor insulation from abrasion during and after installation.
Certifications
- UL/cUL 514B Listed
- UL File # E551894
- CSA C22.2 NO 18.3
- NEC Article 300.6, 314, 344.10 and 300.7(A)
- RoHS compliant
- REACH compliant
Applications
- RMC’s type 316 stainless steel Drain Plugs are developed to allow condensation to drain from an electrical conduit system and can also be used as breathers to reduce condensation buildup within the raceway.
- RMC’s fittings are precision-machined and finished with a polished, hygienic surface. This combination offers exceptional resistance to corrosion and harsh chemicals, making them ideal for environments such as marine facilities, chemical plants, and food processing operations where frequent washdowns are standard. The durable construction reduces maintenance needs and extends service life in demanding applications.
| Part Number | Trade Size | A | B | WT/PC (lbs.) |
|---|---|---|---|---|
| SR6DP05 | 1/2" | 0.862” | 1.610” | 0.20 |
| SR6DP07 | 3/4" | 1.059” | 1.653” | 0.33 |
| SR6DP10 | 1" | 1.374” | 2.000” | 0.70 |
