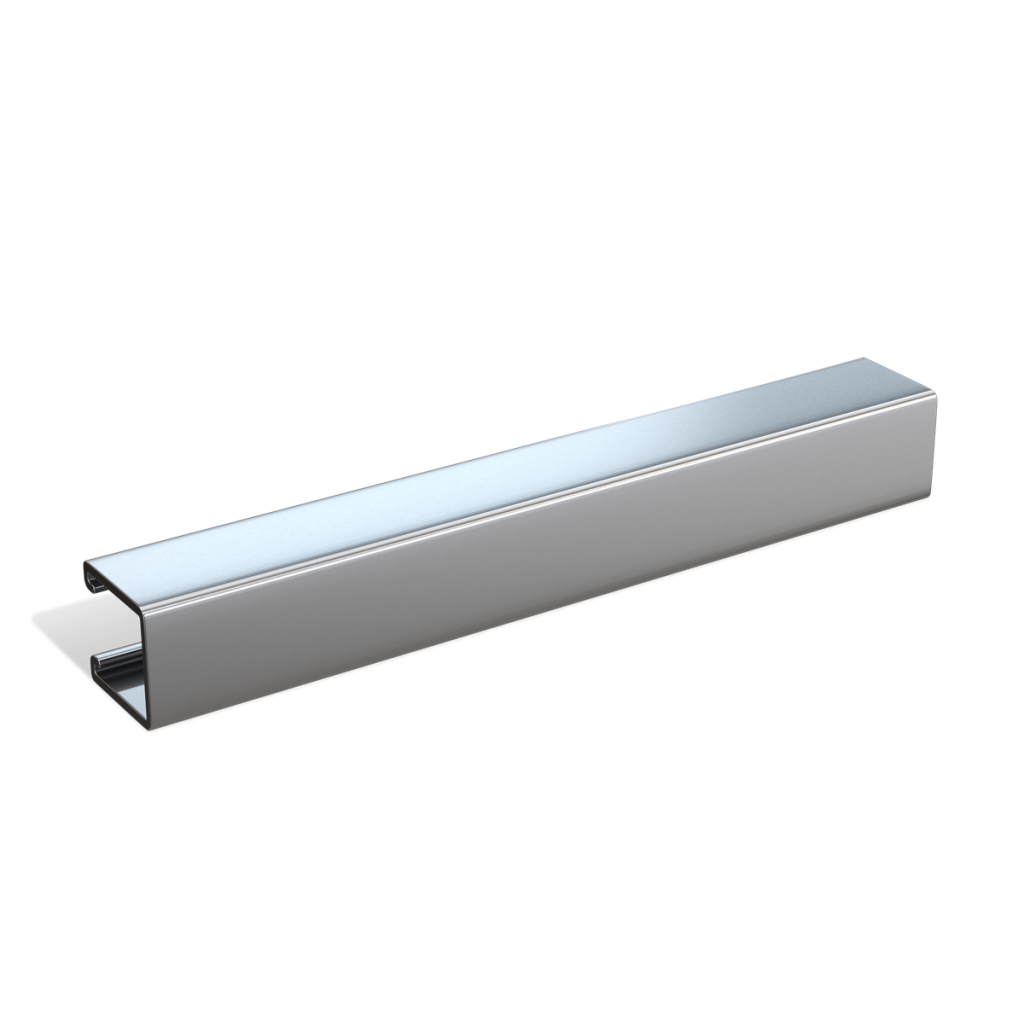

Deep Channel Solid Strut
Product Features
- Strut channels offer exceptional versatility, allowing support systems to be mounted to ceilings, beams, columns, or embedded in concrete.
- RMC’s stainless steel features a hygienic polished finish that delivers outstanding protection in challenging environments.
- Among metallic electrical raceway options, stainless steel offers the highest corrosion resistance, along with exceptional strength and temperature performance.
- RMC offers stainless steel strut in type 304 & 316 alloys to be suitable for all corrosive environments.
- Produced from 12-gauge ASTM A240 sheet.
- Type 304 Part # - ST4-12G-158-158-SLD
- Type 316 Part # - ST6-12G-158-158-SLD
Certifications
- UL/cUL 6A Listed
- UL File # E531581
- CSA C22.2 No. 45.2-08
- NEC Article 344
- ANSI C80.1
- RoHS & REACH compliant
Applications
- RMC’s stainless steel strut channels are designed to support conduit, panel boxes, raceway systems, and other electrical components.
- RMC’s stainless steel are designed to perform in harsh, industrial environments including marine areas, chemical processing facilities, and food processing plants where rigorous chemical washdowns are essential.
- It offers superior corrosion resistance, minimizing the need for frequent maintenance and replacement.
Jump to Chart:
Beam Loading
| Span (in) | Max. Allowable Uniform Load (lbS.) | Deflection @ Uniform Load (in.) | SPAN/ 180 (lbs.) | SPAN/ 240 (lbs) | SPAN/ 360 (lbs.) |
|---|---|---|---|---|---|
| 24 | 1690 | 0.06 | 1690 | 1690 | 1690 |
| 36 | 1130 | 0.13 | 1130 | 1130 | 900 |
| 48 | 850 | 0.22 | 850 | 760 | 500 |
| 60 | 680 | 0.35 | 650 | 480 | 320 |
| 72 | 560 | 0.5 | 450 | 340 | 220 |
| 84 | 480 | 0.68 | 330 | 250 | 160 |
| 96 | 420 | 0.89 | 250 | 190 | 130 |
| 108 | 380 | 1.14 | 200 | 150 | 100 |
| 120 | 340 | 1.4 | 160 | 120 | 80 |
| 144 | 280 | 2.0 | 110 | 80 | 60 |
| 168 | 240 | 2.72 | 80 | 60 | 40 |
| 192 | 210 | 3.55 | 60 | 50 | NR |
| 216 | 190 | 4.58 | 50 | 40 | NR |
| 240 | 170 | 5.62 | 40 | NR | NR |
Column Loading
| Unbraced Height (in.) | Max. Allowable Load @ Slot Face (LBS.) | k=0.65 (Lbs.) | k=0.80 (Lbs.) | k=1.0 (Lbs.) | k=1.2 (Lbs.) |
|---|---|---|---|---|---|
| 24 | 3550 | 10740 | 9890 | 8770 | 7740 |
| 36 | 3190 | 8910 | 7740 | 6390 | 5320 |
| 48 | 2770 | 7260 | 6010 | 4690 | 3800 |
| 60 | 2380 | 5910 | 4690 | 3630 | 2960 |
| 72 | 2080 | 4840 | 3800 | 2960 | 2400 |
| 84 | 1860 | 4040 | 3200 | 2480 | 1980 |
| 96 | 1670 | 3480 | 2750 | 2110 | 1660 |
| 108 | 1510 | 3050 | 2400 | 1810 | *** |
| 120 | 1380 | 2700 | 2110 | *** | *** |
| 144 | 1150 | 2180 | 1660 | *** | *** |
Lateral Bracing
| Span (ft.) | Span (in.) | 1-5/8" x 1-5/8" x 10' - 12 Gauge (Deep Profile) |
|---|---|---|
| 2 | 24 | 1.0 |
| 3 | 36 | 0.94 |
| 4 | 48 | 0.88 |
| 5 | 60 | 0.82 |
| 6 | 72 | 0.78 |
| 7 | 84 | 0.75 |
| 8 | 96 | 0.71 |
| 9 | 108 | 0.69 |
| 10 | 120 | 0.66 |
| 12 | 144 | 0.61 |
